Hume Castle Instation

Location
Hume Castle, Berwickshire
Type
Instation
Call sign
Gilpin 0
Network
Special Duties Personnel
Role Name Posted from Until
Area Signals Section Sergeant Frank Hewitt Apr 1942 Nov 1943
Area Signals Section Sergeant Stanley Judson Unknown Unknown
Station description

Hume Castle is the heavily modified remains of a late 12th or early 13th century castle. The village of Hume is located between Greenlaw and Kelso. It is a Scheduled Ancient Monument, recorded as such by Historic Environment Scotland.

Frank Hewitt was a Royal Signals soldier who was stationed at the Hume Castle Zero station. he was at the site for around 19 months until Nov 1943. He controlled access to the castle holding a 6 inch key that locked the door. In its exposed position, the castle door took two men to hold it shut in high winds, in order to lock it.

The three Royal Signals men were billeted in the village. According to then schoolboy John Manderson, they were billeted with Mrs Jenny Watson in the second house along from the phone box. She was the wife of George,  the Quarry foreman. If asked what they were up to, they simply replied "secret work" and in the wartime era, that was enough to avoid further questioning. They went to RAF Charterhall for baths and to get tobacco. The RAF were curious about what they were up to and apparently a number of planes flew low over the castle to try and find out. Batteries were charged with a Polish unit as there were no other troops within 25 square miles.


It is believed the site was built in early 1942. There was a public event held within the walls in July 1941, indicating it had yet to be requisitioned at that time.

To the left of the entrance door, in the northwest corner, was the working hut. This sat on a flat platform that still remains, although the hut base was removed in 1998 as part of the restoration of the castle. This was where the day to day work of the In Station happened. The platform can be seen on the photos and maps in the Canmore report in the references below.

The OB was in front of the entrance. When Frank arrived at the site, there was a square with rocks on, with a brick base. This was counter weighted and lifted up. However it was felt to be very obvious and so a new disguised entrance was built. This consisted of a small toilet hut built alongside the low wall. The Elsan toilet was screwed to the wooden floor, but if a catch was sprung, the whole floor lifted up and the men could slide underneath into the entrance shaft. To close it, it simply needed to be firmly pushed back into place.

The OB was a standard Zero station. The first chamber appeared to be a poacher's den, panelled with wood and with shelves, rabbit nets and an old gun in the corner.  By pulling the right nails out of the far wall, the door would swing open. Once the door was shut, wires were pulled, these being soldered to the nails, so pulling them back into place.

The main chamber contained the wireless set and beds. Beyond was the third chamber with the generator and an Elsan toilet, as well as the escape exit. This led down a tunnel of concrete pipes to exit outside the castle walls emerging below a dip in the far wall, possibly using the old doorway that was bricked up.

The aerials ran from the OB up the walls built into the stonework. The aerial in the southeast corner broke down and Frank had to climb up to fix it, with a sheer drop on the far side of the wall. Les Parnell, also with Royal Signals, was present when another aerial was installed in the northeast wall near the road. Scaffolding was built up by the Royal Engineers and the top layer of stones removed from the top of the wall over a distance of nine feet. They installed a wooden frame holding the aerial and then replaced the stonework. The coaxial feeder was fitted in a channel between the stones cut down the wall to ground level and re-pointed. To hide this a large section of the wall was re-pointed as well.

The work on the construction of the Operational Base did not go unnoticed. Locals complained about work being done on renovating Hume Castle during the war when there must surely be much greater priorities! Little did they realise the work was considered of the highest priority.

Frank Hewitt also recorded trying to drive an Army Chevrolet truck up to the front door - unsuccessfully - for the slope is very steep.

It is thought that the this site was solely manned by Royal Signals personnel and not at any stage by ATS operators.

The site was guarded at night by the local Home Guard platoon, commanded by Lt James Manderson, John’s father. They understood it was an Army listening post, connected in some way to the nearby RAF base. Access to the interior of the castle was strictly forbidden during the war. As a prominent landmark it attracted visitors daily, but all were turned away. It was only handed back to the Association for the Preservation of Rural Scotland in the summer of 1946, in a rather run down state, with debris inside the walls.


In 2024 CART Volunteer Dave Robson and Dr Kate Stephenson visited making the following report.

The castle is situated above Hume village with the road and village to the north and the castle entrance to the west. Since 2006, the castle has been owned by the Hume Preservation Trust who have installed steps up the hill to the entrance, interpretation boards and a gate into the castle.

The site of the working hut was easy to identify in the northwest corner, and it was possible to make out the shape of the hut from the lichen growth.

We suspect the bunker probably sat under the hollow in the centre of the castle with the earth from the excavation piled to the north (with the bench on top) as this part is higher than the rest of the ground. The original bunker entrance was probably a hollow to the east with loose stone on top, opposite the castle entrance. There were remnants of brick and wartime concrete in the gully to the south of this.

The second entrance through the toilet block was probably to the south of the central wall and may have been where there is an area of disturbance on the eastern end. Lichen growth also suggest something had been in front of this area of wall. There was what appeared to be the remnants of a worn path from the working hut to this point.

We looked for evidence of the aerials and struggled to see any sign of the building work undertaken on the north east wall. There was evidence of fixtures on the wall to the south east, although these may be of later date.

If the bunker was orientated/located as suggested, it would make sense for the escape tunnel to exit from the castle through the bricked-up doorway on the east side. This appears to have been repaired/repointed in 1981 as there is a brick bearing that date.

Station accessibility
The OB site is publicly accessible
Station Status
Destroyed
Pictures
Caption & credit

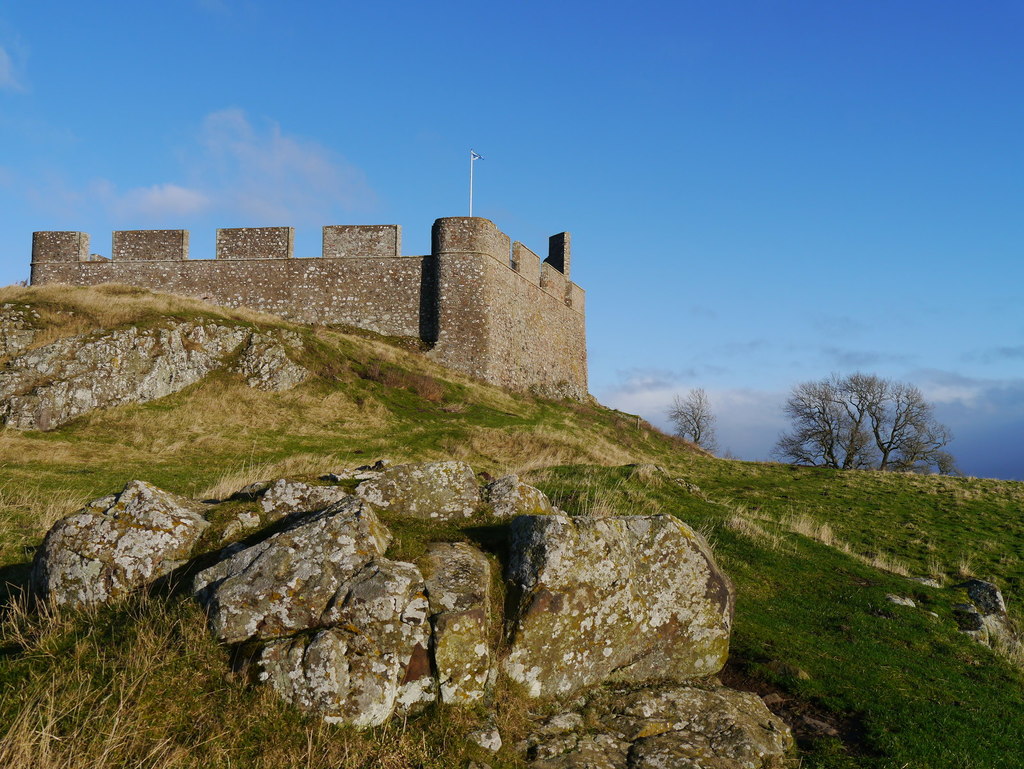

Hume Castle (from James T M Towill)
Caption & credit

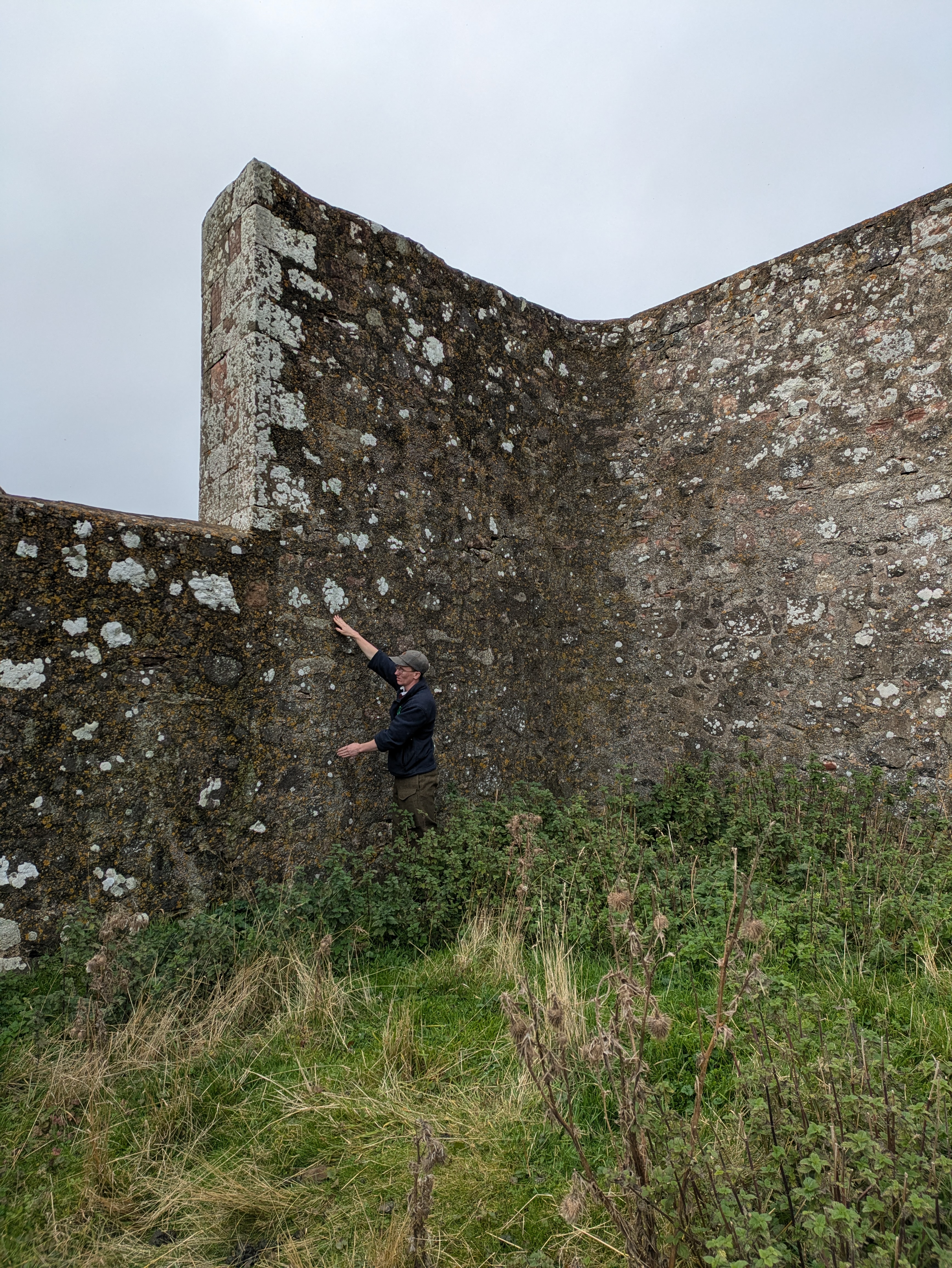

Working hut site with curved outline in lichen on the wall (D Robson)
Caption & credit

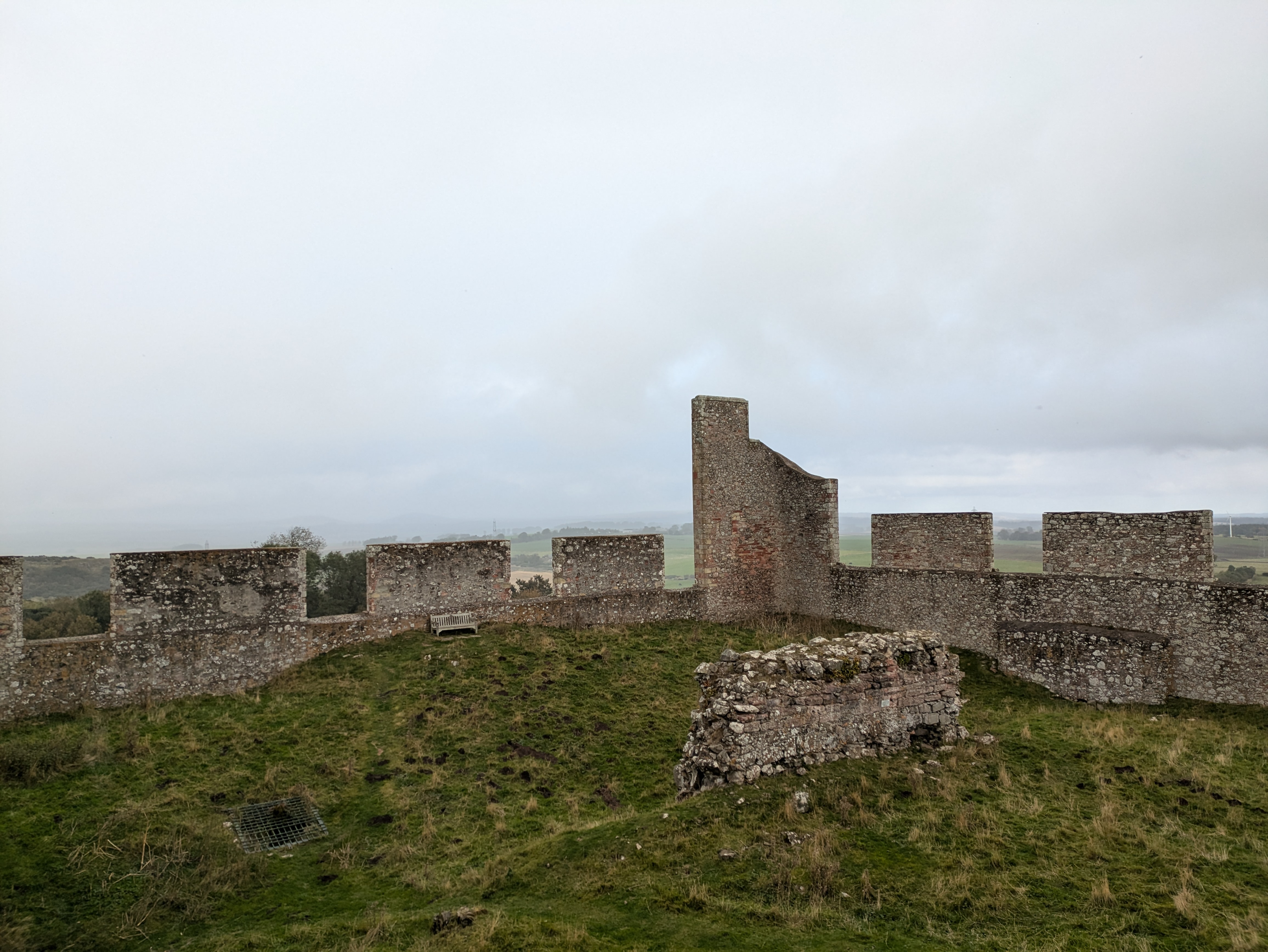

Interior of castle showing hollow and mound with bench (D Robson)
Caption & credit

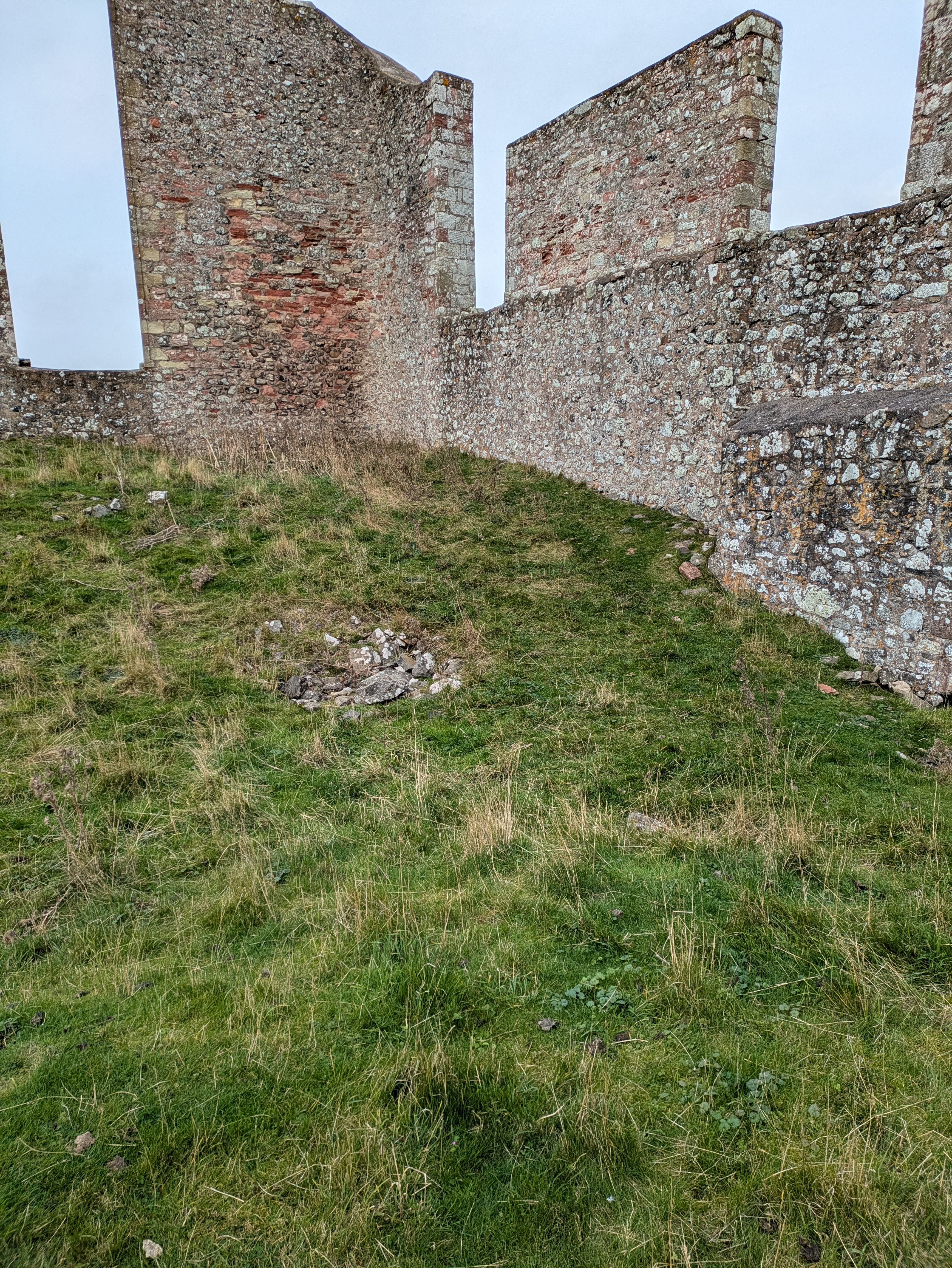

Possible original OB entrance marked by square of rubble (D Robson)
Caption & credit

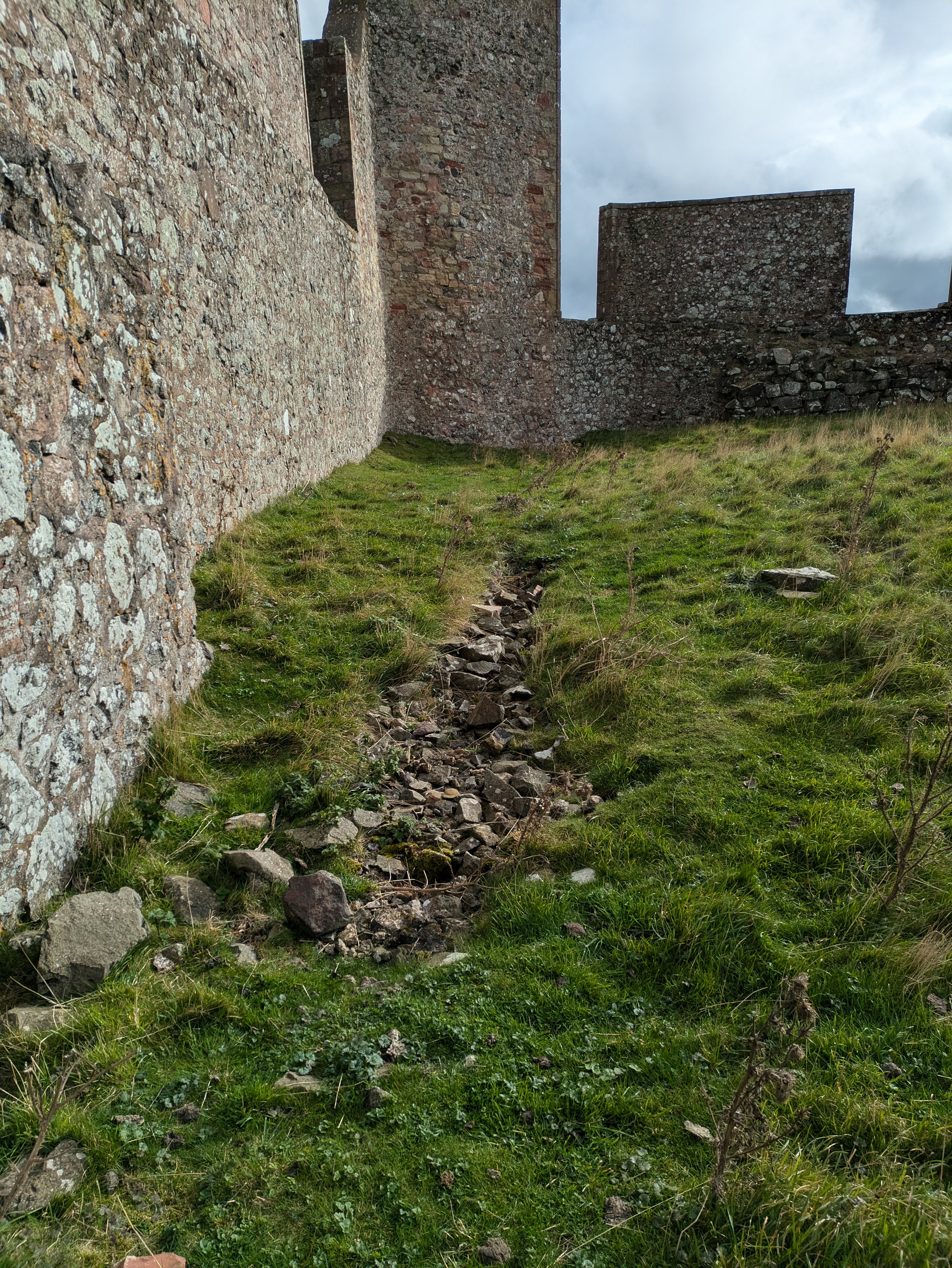

Gully filled with concrete and brick (D Robson)
Caption & credit

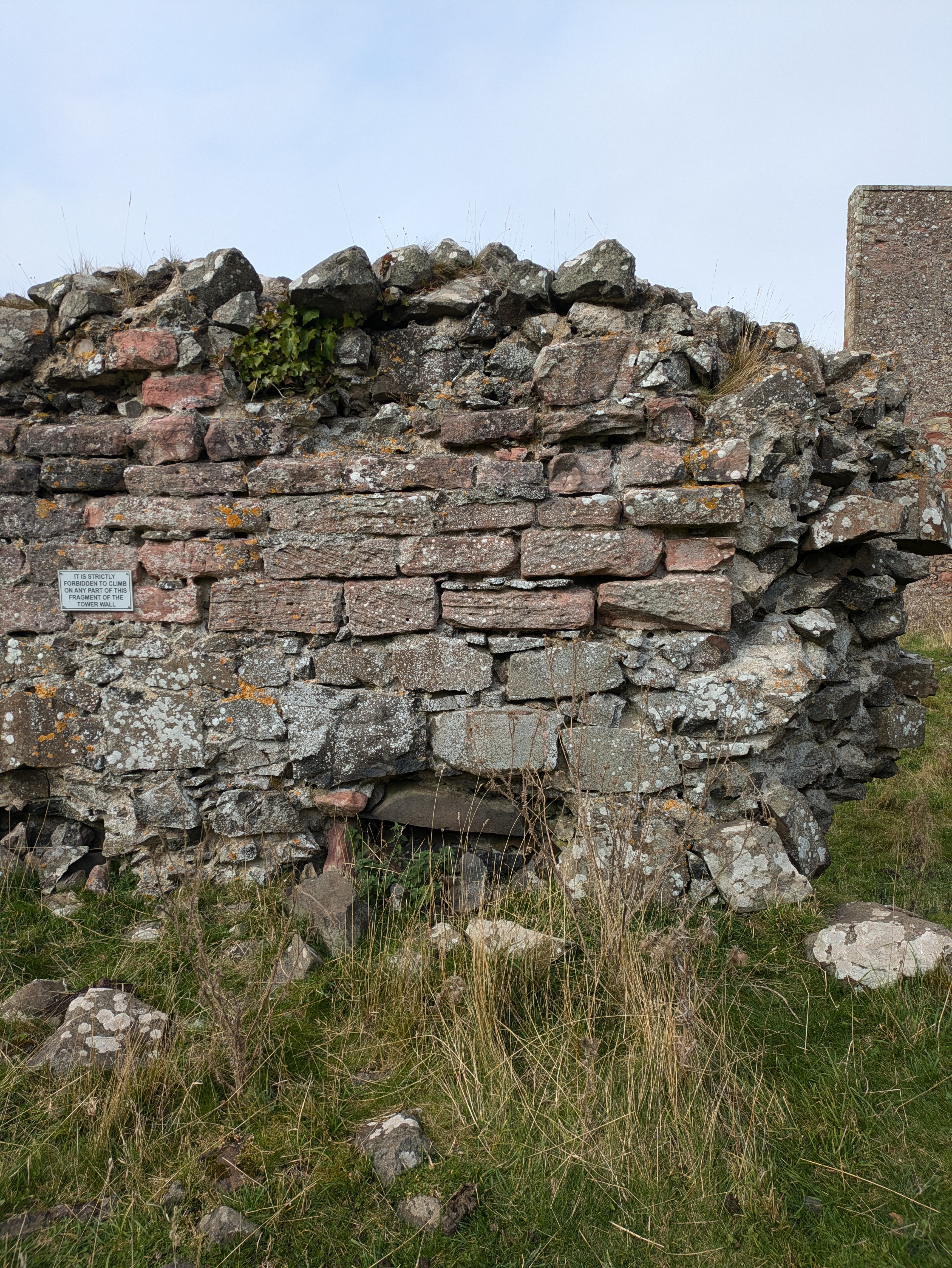

Central wall with area of different stones - possible entrance to OB (D Robson)
Map Location

Hume Castle Instation

References

Stan Judson

Frank Hewitt

Cranmore Historic Environment

John Manderson  [Scottish Borders Memory Bank]  oral history transcript (part II)

Margaret Mitchell [Scottish Borders Memory Bank] oral history transcript

Berwickshire News 6 Aug 1946
