Bewley Down (Axminster) Outstation

Location
Bewley Down, Axminster, Devon
Type
Outstation
Call sign
Chirnside 1
Special Duties Personnel
Role Name Posted from Until
Operator Mr Arthur Douglas Ingrams 1942 1943
Runner Mrs Medora Byron Eames Unknown 20 Jul 1944
Station description

Chirnside 1 is a very unique site. It survives in remarkably good condition beneath an old privy in the back garden of a house built high on the side of a valley. The author of this brief report was granted a rare chance to visit the site, which is on private property.

A hidden lever, buried in the ground a few feet away from the privy door, is turned 90 degrees to release the toilet bench to allow the whole structure to easily be lifted. The dugout is accessed by a shaft beneath an old fashioned bench seat and bucket toilet, which lifts with the aid of counterbalance weights to allow entry. One then passes through a low chamber and door into what is known as the map room, since it has a large table. This is the roughly the size of an Anderson shelter and uses similar corrugated iron sheets.

A concealed door in the end wall of this room opens to allow access to the wireless room. With the map room table and bench folded back, the far wall pivots to reveal the wireless room behind the sleeper wall. A variety of fascinating mechanisms control access at each stage, with built in fail-safes in case of damage. It also appears that a escape tunnel may have been started at some time in the far wall of the chamber. This does not seem to have been completed and the initial opening covered with metal sheeting.

Messages delivered to the site arrived via a special tree stump, with a top that could be moved aside to allow a split tennis ball to be dropped down a pipe concealed inside. This came out in the wireless room. It suggests that there were one or more couriers who would bring messages to the site, which would be placed inside the split tennis ball.

Originally a hedge ran through the garden almost parallel to the privy. This was used to conceal a complicated and multi layered ventilation system along with the aerial feed from the trees to the radio room. Also hidden by the hedge was the “dead letter drop”. This was disguised as a tree stump with a lid that swung around revealing a hollowed out centre and sitting on top of the message pipe leading down to the wireless room. Messages left in split tennis balls would then be rolled down to the operator. Messages would have been left by presently unknown local informants.

The counter weights for the restored entrance have a large lead ingot at the bottom, beneath a smaller ingot and some lead sheet. The large ingot is stamped Broken Hill, Australia, and appears to be from the same batch as those at Hemyock. The lead sheet is a modern addition to counterbalance the reconstructed privy box precisely.

The aerial cable runs up a groove to the left of a bird box and can be seen curving across the trunk where it would have connected to the dipole aerial in the branches. A brief online report cannot hope to cover all the complexities of this site, or the full details of Douglas Ingrams career with Auxiliary Units. The complete story is told in “Chirnside 1” by Hugh May. This 120 page book contains the results of an extensive investigation of all aspects of the site and is highly recommended.

Videos here:





Station accessibility
This OB is on private land. Please do not be tempted to trespass to see it
Station Status
Largely intact
Pictures
Caption & credit

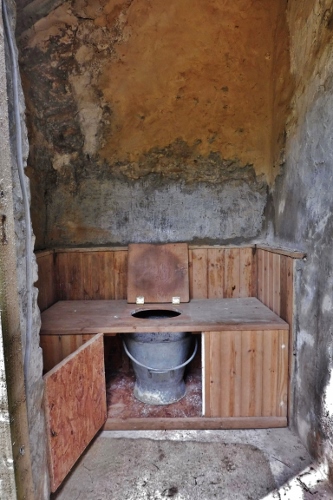

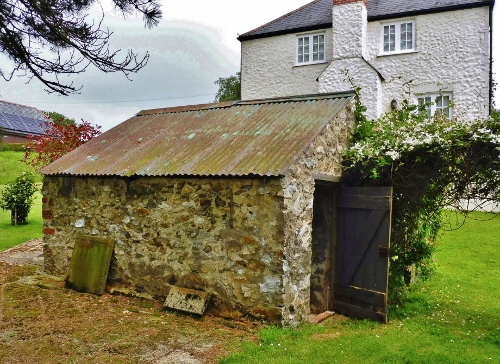

Outside privvy
Caption & credit
Outside privvy
Caption & credit

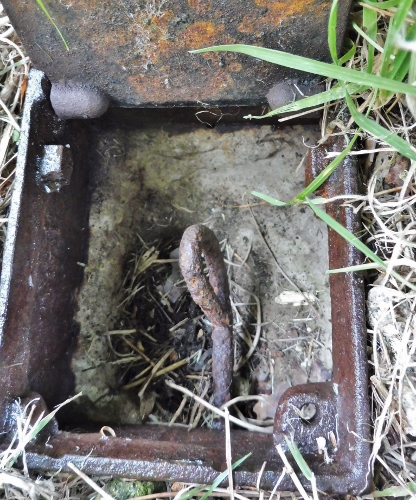

Handle to turn to release loo seat
Caption & credit

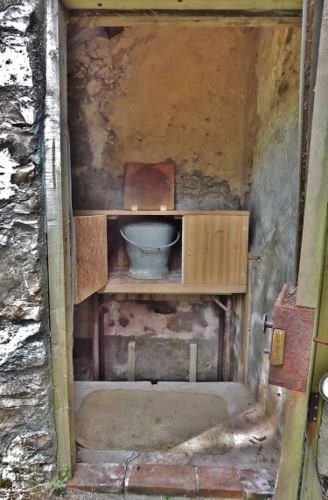

Loo lifts up to access Station
Caption & credit

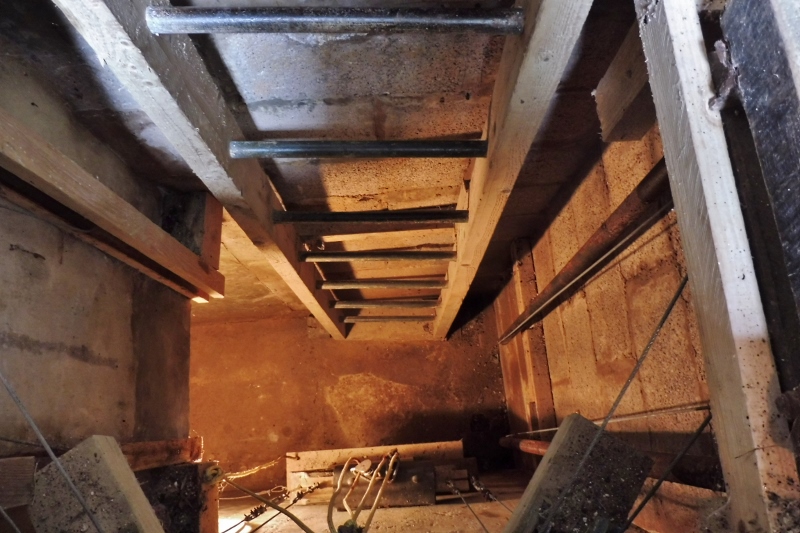

Ladder under loo leading down
Caption & credit
Bottom of ladder
Caption & credit

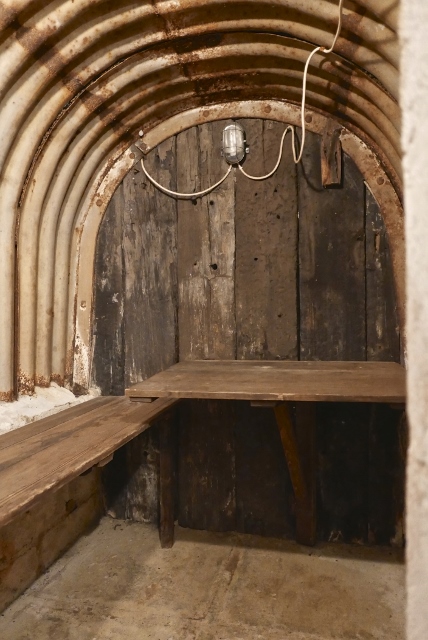

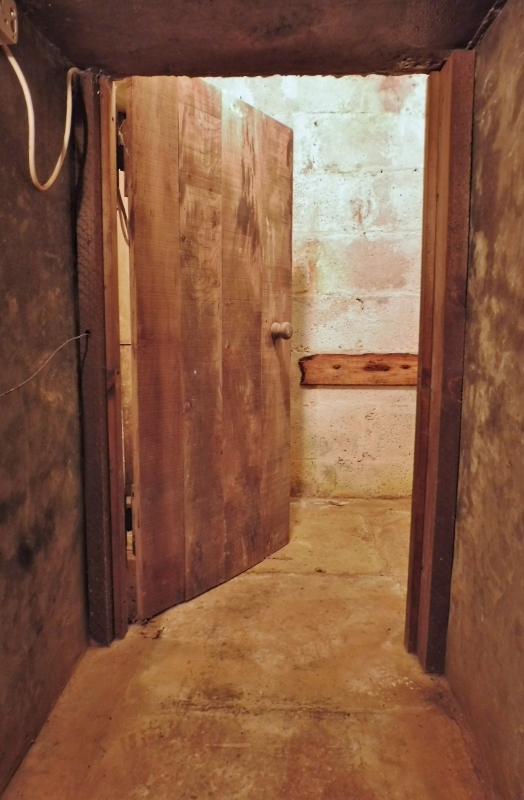

Corridor leading to map room
Caption & credit

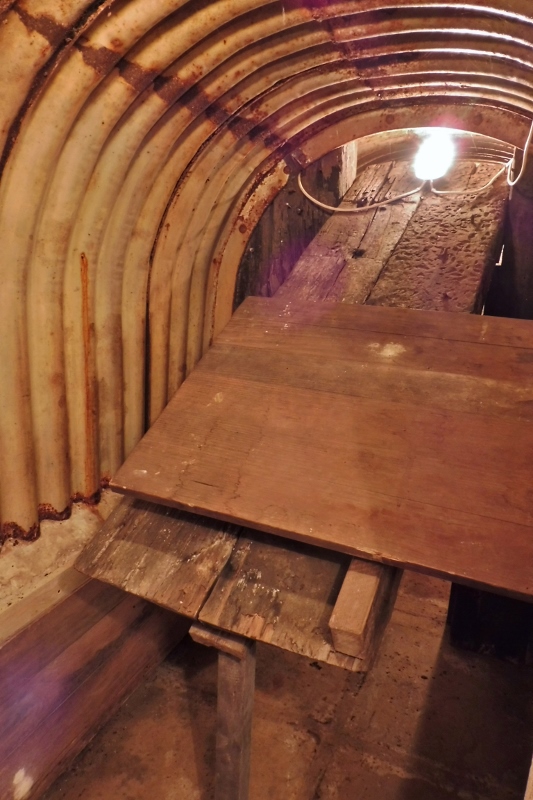

Map room chamber with table and bench
Caption & credit

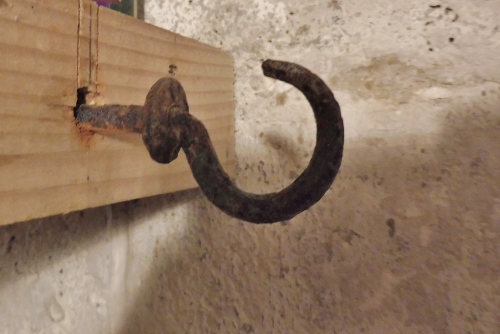

Pull cup hook to release back wall of map room
Caption & credit
Back wall lifts up
Caption & credit

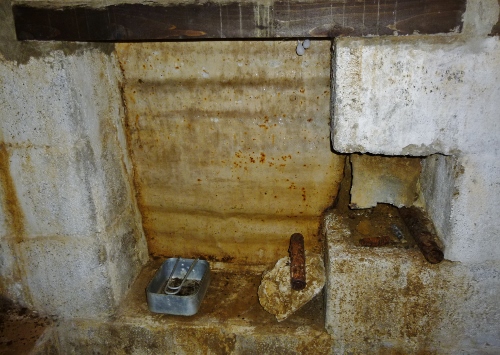

Wireless room
Caption & credit

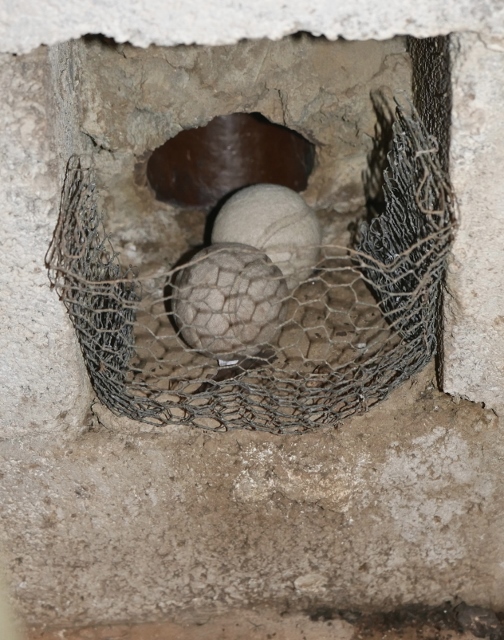

Messages in tennis balls arrive in wireless room
Caption & credit

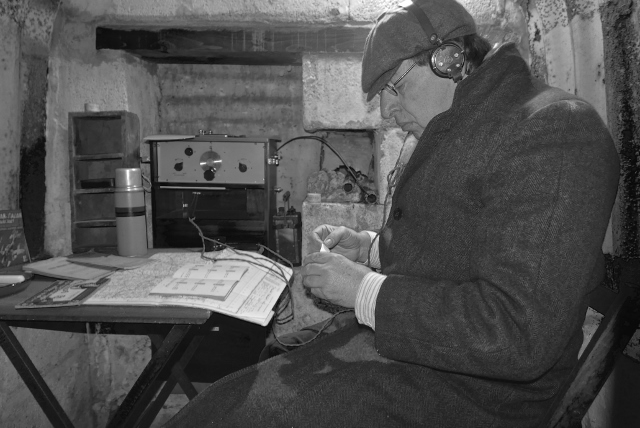

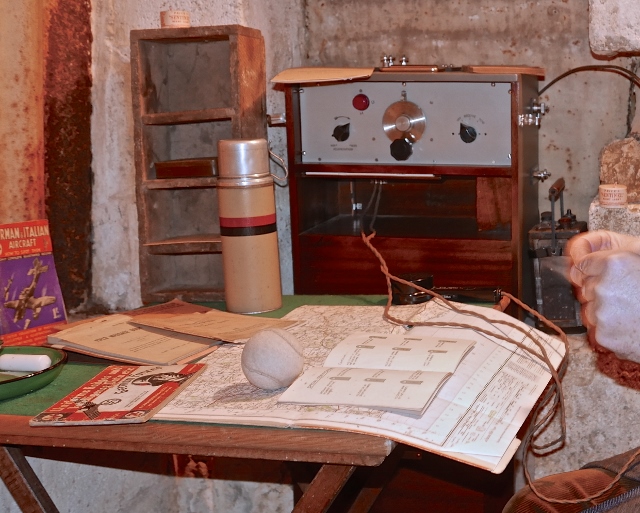

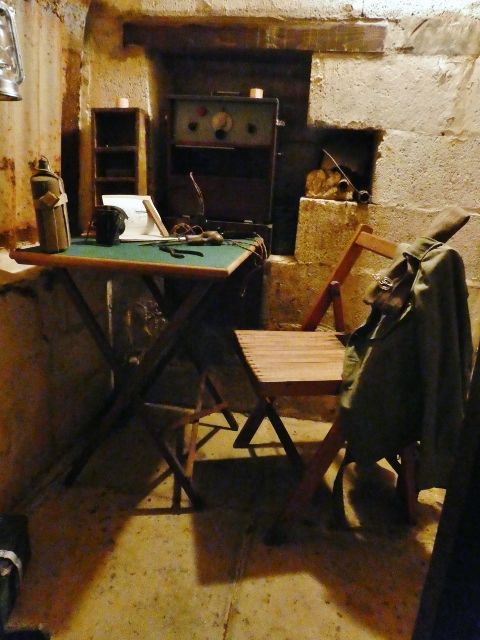

Reconstruction of when wireless room was in action
Caption & credit
Reconstruction of when wireless room was in action
Caption & credit
Reconstruction of when wireless room was in action (Tony Salter)
Caption & credit

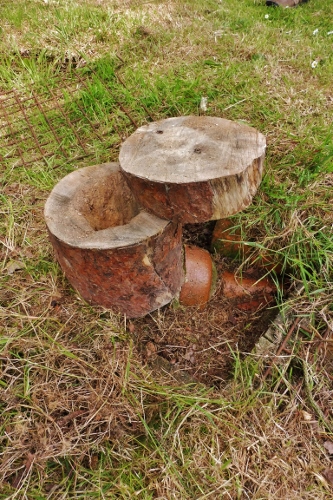

Hollowed out tree for message drop - reproduction
Caption & credit
Message drops and vent pipes
Caption & credit
Boxed in vent pipes
Caption & credit

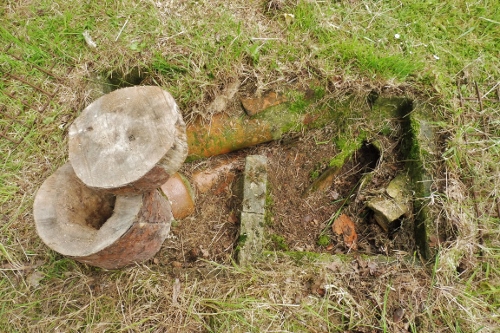

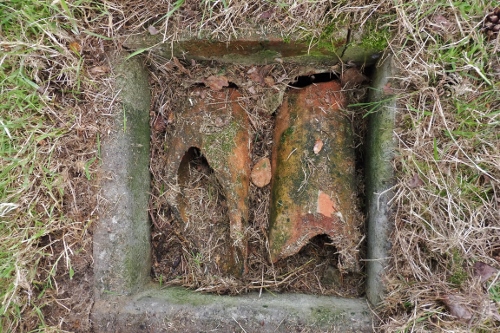

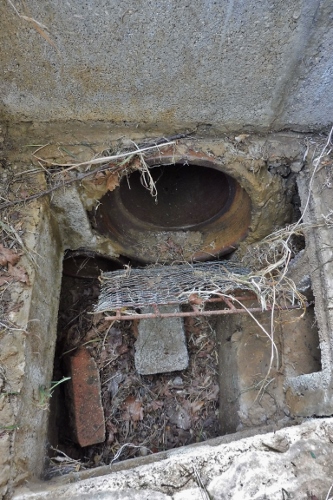

Bewley Down vent pipe
Caption & credit

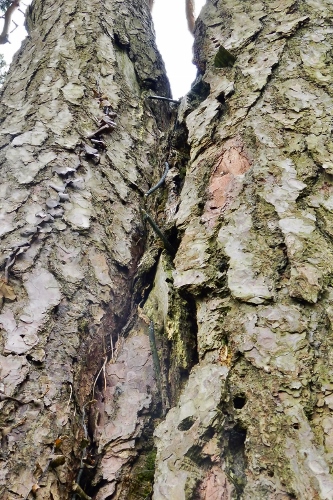

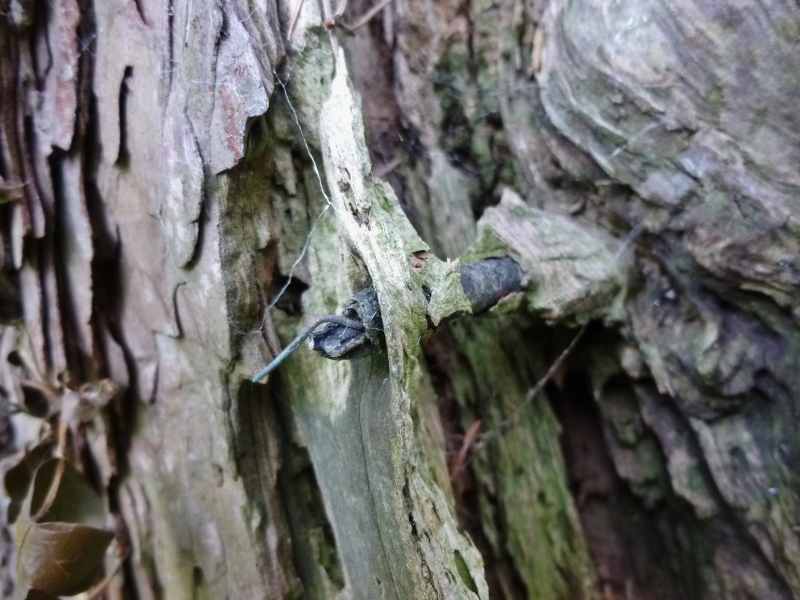

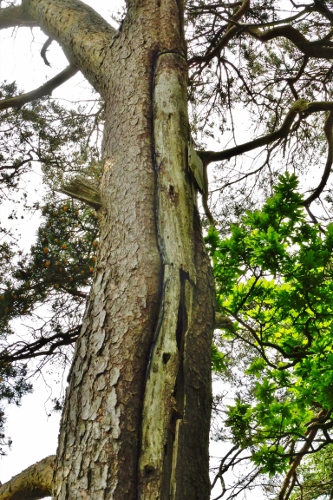

Bewley Down aerial cable
Caption & credit
Bewley Down aerial cable
Caption & credit
Bewley Down aerial cable
Map Location

Bewley Down (Axminster) Outstation

References

Arthur Gabbitas
Sue Wallace
Chirnside 1, by Hugh May
The Wilson Family for their great hospitality
Tony Salter
Western Morning News 24 Feb 1997
